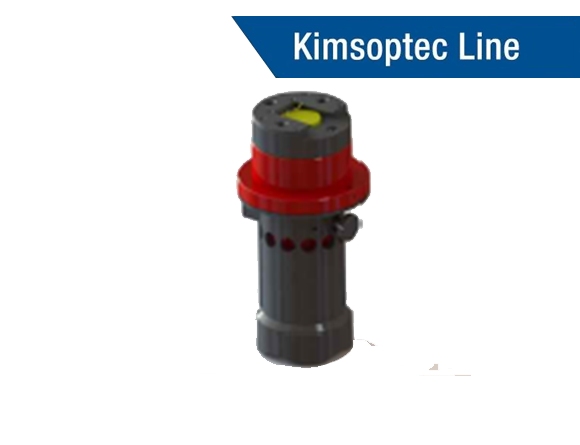

TLS-3A System

Temperature LED Socket

TLS-3A System

TLS-3A System

Temperature LED Socket

Description

TLS is one of very fast temperature control system in market. In most of range, control time is aboiut 2minutes, and does not exceed a max 3 minutes

TLS operation required only four buttons. Its very intuitive , so user don’t need the skill. Also, working time is reduced with very simple DUT’s mounted





570400ea55dabfb958a41ef6d15c3037_1586364132_8168.jpg    570400ea55dabfb958a41ef6d15c3037_1586364137_8738.jpg     570400ea55dabfb958a41ef6d15c3037_1586364137_9035.jpg


Key Features

- Control range : 20℃ ~ 100℃.

- Accuracy : ± 0.1 ℃

- Load : MAX 3W (Aging)

- Target : Package and Metal PCB

- Ambient Temperature Range : 20℃ ~ 30℃


Contents

Description

 Input main power

 MAX 3Vdc / 4A

 Max Load

 Max 3Watt (at aging)

 Target Sample Size

 20Phi / available for STAR PCB

 Control Temp

 25℃ ~ 100℃.

 Accuracy

 Max ± 0.1 ℃(at 100℃.)

 Sensor

 PT100



Sample system
