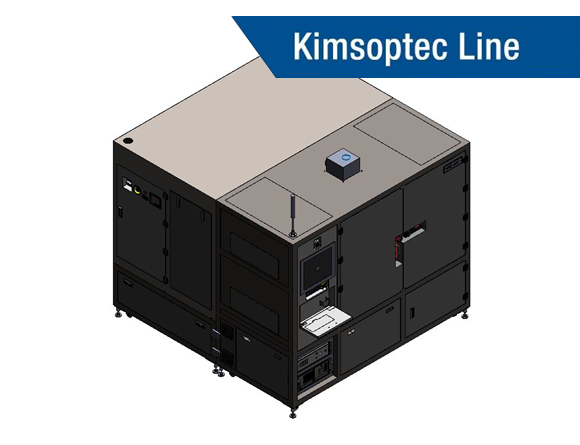

Wide Angle Display goniometer system

Wide Angle Display goniometer system

Wide Angle Display goniometer system

Wide Angle Display goniometer system

Wide Angle Display goniometer system

Description

Muti-angle WAD multi measuring system: System equipment for reliability test of 60 channel display sample and multi-angle optical measurement. As display panel measuring equipment, its available to analysis color coordinates and optical feature measurement. Shoots the image of display using Minitop to verify the information about the sample and analysis luminance and color values with CAS140CT spectrometer. Measure by mounting(X/Y/Z theta axis automatic) 60ea display module sample



Key Features

- Available in several versions from 200nm – 2150nm

- Utmost dynamic range and sensitivity

- Powerful stray light surpression

- Integrated density filter wheel enables wide intensity range

- back-thinned area scan CCD detector

- Built-in dark-current shutter




Technical data and specifications

 Component

 Description

 Spectroradiometer

CAS 140CT/D-151 (VIS) for the spectral range from 360–830 nm

 Minitop Camera

Pritchard optics with only 15° tilted aperture mirr or provide perfectly round

and sharp measurement spot. Internal viewfinder USB CMOS camera with lens and large field of view.

 Spectrometer SDK

Programming interface for Instrument Systems spectrometers




Examples of applications
