UV-LED Measurement

Sensitive and precise UV measurement in the lab from 200 nm

UV-LED Measurement

UV-LED Measurement

Sensitive and precise UV measurement in the lab from 200 nm

UV-LED lab measuring stations are used for testing new products or, e.g. building reference systems for UV-LED production. In order to cater for new measurement scenarios, the individual system components of the high-end portfolio from Instrument Systems are subject to ongoing technological improvement.



Key Features:

- High sensitivity in the UV from 200 nm

- Calibration traceable to PTB

- Very low stray light level

- Optional: stray light correction matrix for best-possible measurement accuracy





ComponentDescription

Spectroradiometer

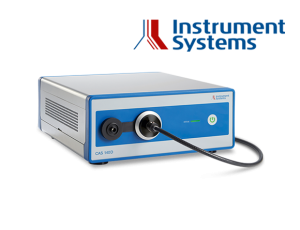

CAS 140D-157 (UV-VIS) for the 200-830 nm spectral range with a particularly high level of sensitivity in UV from 200 nm.

Integrating spheres

Integrating spheres ISP50UV, ISP150UV and ISP250UV with an inside diameter of 50, 150 and 250 mm with PTFE reflective material for high optical throughput in UV from 200 nm. An adapter plate for holding LED test sockets and an SMA connection for an external auxiliary light source are available for lab use.

CalibrationCalibration traceable to national standards as PTB or NIST.

Software

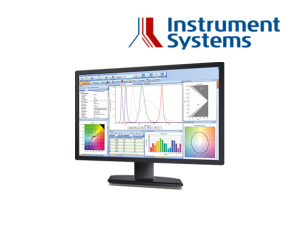

SpecWinPro lab software with numerous functions for the measurement of LEDs

UV reference LED
(optional)

ACS-570-24, -26, -28: reference LEDs with 285 nm, 315 nm and 365 nm for testing the UV measurement system. Use in combination with a highly stable PSU-10 power source.

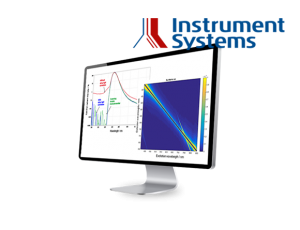

Stray light matrix
(optional)

Best-possible stray light properties using a spectrometer specific numerical stray light correction.

Auxiliary light source
(optional)

LS500 dual light source with halogen and deuterium lamp for performing stray light correction.

LED test socket (optional)

Customized LED test sockets with or without active cooling tailored to the LED adapter plate of the integrating spheres.



Examples of applications
