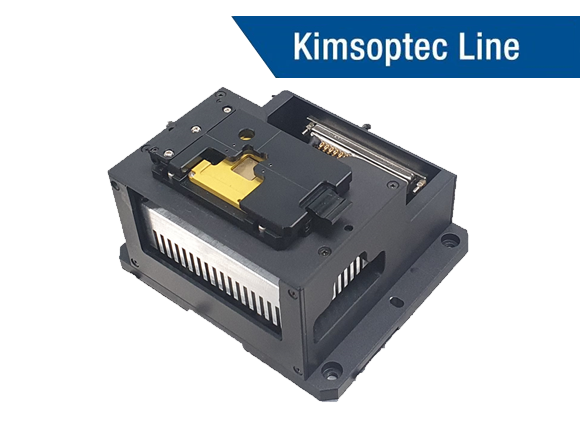

Socket & Temp JIG with Temp Controller

Socket & Temp JIG with Temp Controller

Socket & Temp JIG with Temp Controller

Socket & Temp JIG with Temp Controller

Socket & Temp JIG with Temp Controller

Key Features:

• DUT Driving & Direct Temp Control(Ts).
• Socket can be manufactured according to the DUT (customize)
• Very fast temperature control



Technical data and specifications

Socket & Temp JIG

 Contents

 Description

 Input main power

 MAX 12Vdc / 3A

 Sample Type

 PKG, Metal PCB, FPCB …

 Control Temp

 25℃ ~ 100℃.

 Accuracy

 Max ± 0.1 ℃(at 100℃.)

 Sensor

 PT100

 W*D*H

 120*105*80mm





Temp Controller

 Contents

 Description

 Output power

 MAX 12Vdc / 3A

 Accuracy

 Max ± 0.1 ℃(at 100℃.)

 Control Temp

 25℃ ~ 100℃.

 Resolution

 0.1 ℃

 Control Method

 P.I.D / PWM 1KHz

 W*D*H

 153.2*216.8*99.2mm









[이 게시물은 최고관리자님에 의해 2020-07-21 17:08:19 Products에서 복사 됨]

Sample system
