LumiCam Display Measurement

Filter-based camera system for determining luminance and color

LumiCam Display Measurement

Filter-based camera system for determining luminance and color

문의하기 브로셔다운로드

The broad variety of displays using a wide range of technologies requires 2D imaging systems that allow for a precise and spatially resolved measurement of luminance and color.

To this aim Instrument Systems offers the color filter-based camera system LumiCam. The different LumiCam models and extensive optical accessories make this camera a quick-change artist for diverse measuring tasks in the lab and quality control in small-scale production. The LumiCam from Instrument Systems has long since become an integral part of the display measurement setup, particularly in the automotive sector.

Key Features:

Precise, spatially resolved 2D-measurement of luminance and color

Motorized lens and aperture control

Flexible and user-friendly application

Extensive analysis software

Component	Description

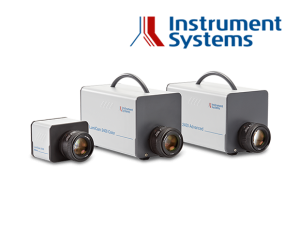

Measuring camera	LumiCam 2400/2400B filter-based imaging photometer and colorimeter in the Mono, Color (4 color filters) or Advanced (6 color filters) variants

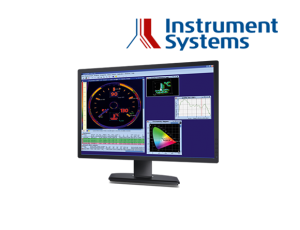

Software	LumiCam software with optional Black Mura plug-in
Optical accessories	Motorized lenses with 20mm, 28mm, 50mm or 100mm focal length and OD2 or OD4 filter
LVK test setup	Accessory set consisting of optical bench, translucent shield, holder for the LumiCam, holder for test sample
BSDF test setup	Accessory set comprising optical bench, isotropic light source, holder for the LumiCam, holder for test sample

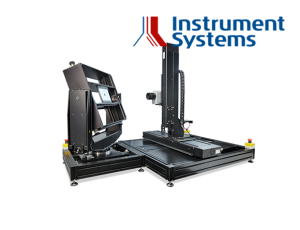

Positioning systems	DTS 400 and DTS 500
