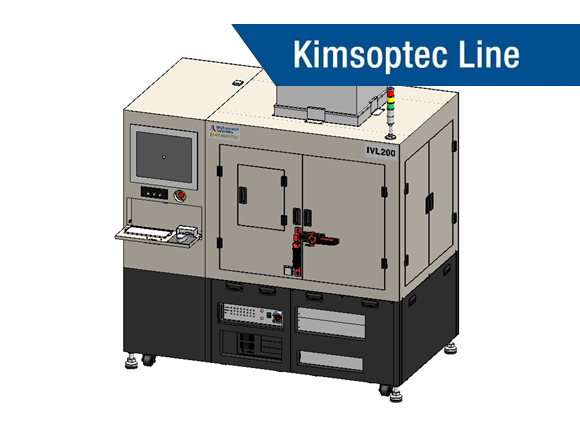

IVL-200 system

IVL-200 system

IVL-200 system

IVL-200 system

IVL-200 system

Description

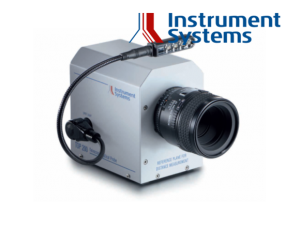

In combination with a spectrometer, the TOP 200 Telescopic Optical Probe permits precise measurement of radiance and luminance, as well as the chromaticity of displays, panel graphics and other light sources. The TOP 200 is a completely new development that is based on an optimized Pritchard style optical system with integrated view-finder camera. This allows users to visualize the field of view on a computer screen and to monitor the measuring spot position while measurements are being taken.



Key Features

- Perfectly round and sharp measuring spot with optimized Pritchard style optical system

- Convenient focusing by internal view-finder camera

- Large number of lenses for wide range of measuring-spot sizes and distances to test samples

- The software allows 4 different measuring-spot sizes to be selected

- Flexible fiber connection with patented mode mixer for accurate measurements




Technical data and specifications

 Component

 Description

 Spectroradiometer

 CAS 140CT/D-151 (VIS) for the spectral range from 360–830 nm

 Top 200

 Perfectly round and sharp measuring spot with optimized Pritchard style optical system

 Spectrometer SDK

 Programming interface for Instrument Systems spectrometers




Examples of applications
